Current Sensor
Current Sensor
Hall Effect, Open Loop Type with Permalloy Cores
20mm or 12mm High, RoHS Compliant

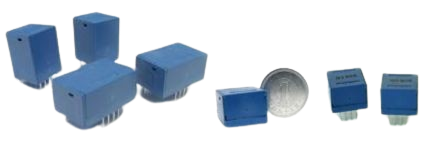

Open Loop Type Current Sensor
Features
- High accuracy and reliability in severe environments realized
by Astec’s design. - Detections of various currents including AC, DC, Pulses, etc.
- Detection of current direction.
- Analogue output by converting current value to voltage value
- Perfect isolation of output side from detection side.
- Insensitive for temperature change and voltage fluctuation.
- Minimized current noise by the shielding effect from Astec’s design.
- Compact size and light weight.UL Listed
Singel Output & Dual Output
- SCD Series: Single Output
Input Current(If) : 3, 5, 10, 15, 20A
Input Voltage: +5, +/-5, +12, +/-12, +/-15V
Hall Current Sensor - SCL Series: Dual Output
Input Current(If) : 3, 5, 10, 15, 20A
Input Voltage: +12V
Application Examples
- Servomotor Drive
- Inverter
- Robot Arm
- Power Supply Detection
- Chip Mounte
- Broadcasting Equipment
- Others
Distributors
U.S.A
CUI Inc.
Industrial Electronics Division
20050 SW 112th Avenue,
Tualatin, OR 97062,
Tel.: (503)-612-2322
Fax.: (503)-612-2380

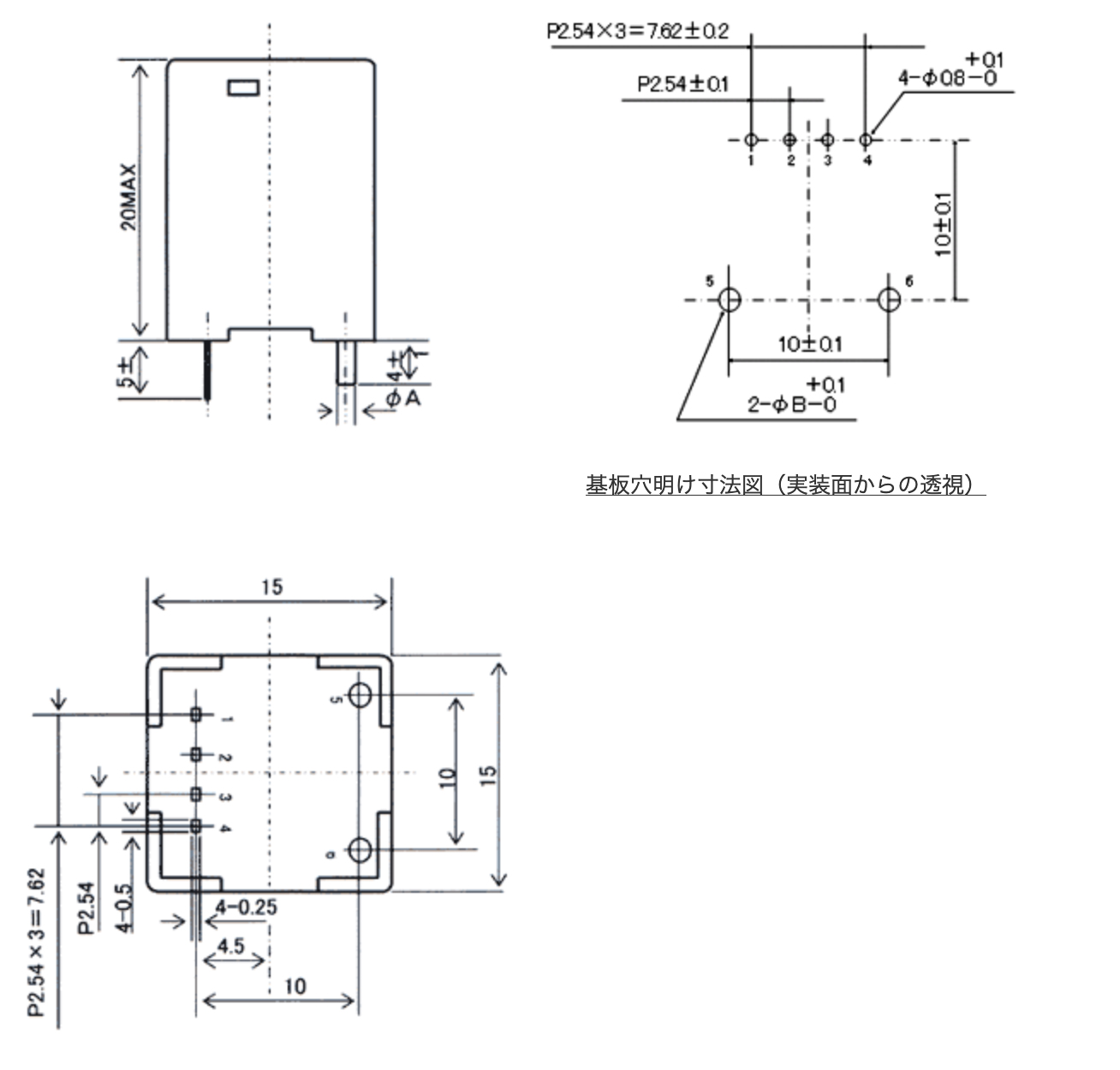

Single type: SCD 20mm High
Germany (Europe)
Seika Sangyo GmbH
Heltorfer Strasse 16,
40472 Duesseldorf, DEUTSCHLAND.
Tel.: +49(0)211-4158-112,
Fax.: +49(0)172-21 81 406,
www.seika-germany.com , JR Encoder
Part Number Table
| Output | Series | Input Volt. |
Detct. Curr. |
Detct. Type |
Part Number |
DWG | Note |
| Single Output |
SCD except. SSR hight 20mm SSR 12mm high |

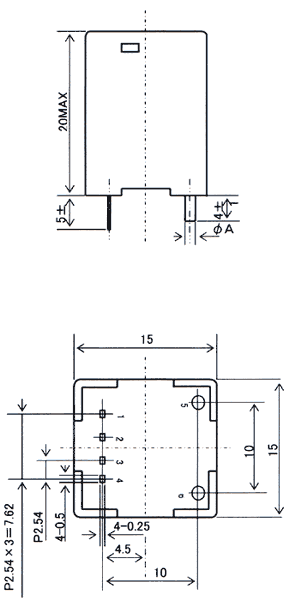

+/-15V | 3Ａ | Bipola | SCD03PAR | Fig-1 | |
| 5Ａ | SCD05PAR | ||||||
| 10Ａ | SCD10PAR | ||||||
| 15Ａ | SCD15PAR | ||||||
| 20Ａ | SCD20PAR | ||||||
| +/-12V | 3Ａ | SCD03PBR | |||||
| 5Ａ | SCD05PBR | ||||||
| 10Ａ | SCD10PBR | ||||||
| 15Ａ | SCD15PBR | ||||||
| 20Ａ | SCD20PBR | ||||||
| +/-5V | 3Ａ | SCD03PTR | |||||
| SCD03HTR | Low Noise | ||||||
| SCD03HTR-E | CE Marking self decl. | ||||||
| 5Ａ | SCD05PTR | ||||||
| SCD05HTR | Low Noise | ||||||
| SCD05HTR-E | CE Marking self decl. | ||||||
| 10Ａ | SCD10PTR | ||||||
| SCD10HTR | Low Noise | ||||||
| SCD10HTR-E | CE Marking self decl. | ||||||
| 15Ａ | SCD15PTR | ||||||
| SCD15HTR | Low Noise | ||||||
| SCD15HTR-E | CE Marking self decl. | ||||||
| 20Ａ | SCD20PTR | ||||||
| SCD20HTR | Low Noise | ||||||
| SCD20HTR-E | CE Marking self decl. | ||||||
| ＋12V | 3Ａ | DC | SCD03PSN | ||||
| Bipola | SCD03PSR | ||||||

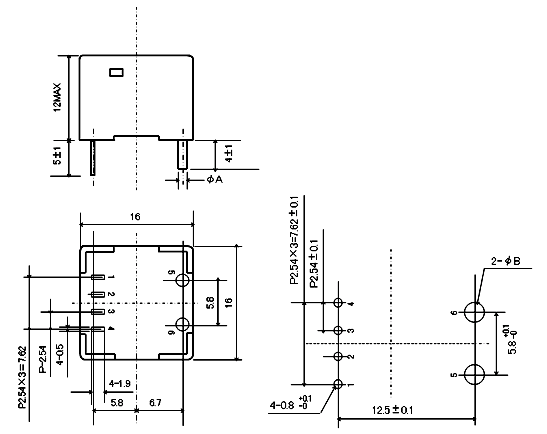

| SCD03SSR | Fig-3 | Height12mm | |||||
| 5Ａ | DC | SCD05PSN | Fig-1 | ||||
| Bipola | SCD05PSR | ||||||
| SCD05SSR | Fig-3 | Height12mm | |||||
| 10Ａ | DC | SCD10PSN | Fig-1 | ||||
| Bipola | SCD10PSR | ||||||
| SCD10SSR | Fig-3 | Height12mm | |||||
| 15Ａ | DC | SCD15PSN | Fig-1 | ||||
| Bipola | SCD15PSR | ||||||
| SCD15SSR | Fig-3 | Height12mm | |||||
| 20Ａ | DC | SCD20PSN | Fig-1 | ||||
| Bipola | SCD20PSR | ||||||
| SCD20SSR | Fig-3 | Height12mm | |||||
| ±5V | 3Ａ | DC | SCD03PUN | Fig-1 | |||
| Bipola | SCD03PUR | ||||||
| SCD03EUR | Withstand Voltage 4.0K | ||||||
| 5Ａ | DC | SCD05PUN | |||||
| Bipola | SCD05PUR | ||||||
| SCD05EUR | Withstand Voltage 4.0K | ||||||
| 10Ａ | DC | SCD10PUN | |||||
| Bipola | SCD10PUR | ||||||
| SCD10EUR | Withstand Voltage 4.0K | ||||||
| 15Ａ | DC | SCD15PUN | |||||
| Bipola | SCD15PUR | ||||||
| SCD15EUR | Withstand Voltage 4.0K | ||||||
| 20Ａ | DC | SCD20PUN | |||||
| Bipola | SCD20PUR | ||||||
| SCD20EUR | Withstand Voltage 4.0K | ||||||
| Dual Output |

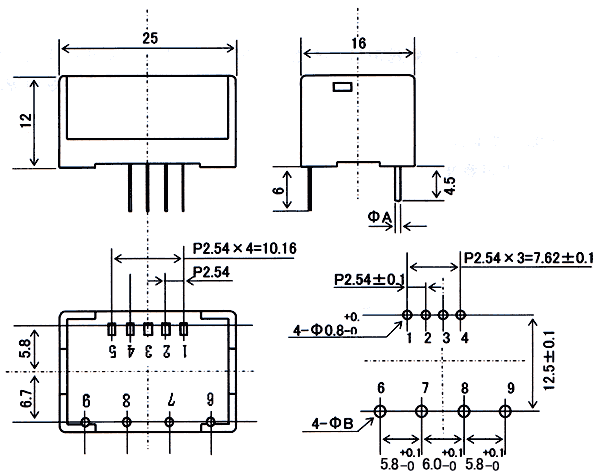

SCL | ＋12V | 3Ａ | Bipola | SCL03PSR | Fig-2 | |
| SCL03HSR | Low Noise | ||||||
| 5Ａ | SCL05PSR | ||||||
| SCL05HSR | Low Noise | ||||||
| 10Ａ | SCL10PSR | ||||||
| SCL10HSR | Low Noise | ||||||
| 15Ａ | SCL15PSR | ||||||
| SCL15HSR | Low Noise | ||||||
| 20Ａ | SCL20PSR | ||||||
| SCL20HSR | Low Noise |
